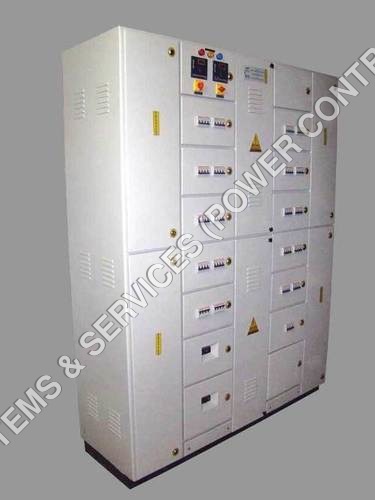

7 Distribution & Sub-Distribution Panel

Name: 7 Distribution & Sub-Distribution Panel
Brand: Systems And Services Power Controls
Price: 25000 INR
Availability: InStock

25000 INR/Unit

Get a Price/Quote

Product Details:

Protection Level IP42 / IP54
Rated Current Up to 630A
Cooling System Natural/Forced ventilation
Rated Insulation Voltage 690V
Connectivity Type Cable Entry Top/Bottom
Features Robust design, Reliable operation, Modular assembly
Thickness 1.6mm to 2.5mm
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

7 Distribution & Sub-Distribution Panel Price And Quantity

Minimum Order Quantity 1 Unit
Price 25000 INR/Unit

7 Distribution & Sub-Distribution Panel Product Specifications

Rated Insulation Voltage 690V
Frequency (MHz) 50 Hz
Connectivity Type Cable Entry Top/Bottom
Features Robust design, Reliable operation, Modular assembly
Material CRCA steel
Rated Voltage 415V AC
Current Rating Up to 630A
Thickness 1.6mm to 2.5mm
Application Industrial, Commercial Distribution
Surface Finish Powder Coated
Product Type Distribution & Sub-Distribution Panel
Surface Color RAL 7032 (Grey)
Protection Level IP42 / IP54
Maximum Output Current 630A
Rated Current Up to 630A
Display Type Analog / Digital Meters
IP Rating IP42 / IP54
Cooling System Natural/Forced ventilation
Standard IEC 61439-1/2
Cover Material CRCA Sheet Steel
Way Single/Double/Multiple-way
Components MCCBs, MCBs, Busbar, Indicating Lamp, Metering
Control System Manual/Automatic
Panel Type Floor Mounted / Wall Mounted
Base Material CRCA Sheet Steel
Protection Class Class I
Cabinet Material CRCA steel
Dimension (L*W*H) Customized as per requirement
Rated Operation Voltage 415V
Operating Voltage 415V AC

Type of Doors Single/Double with locks
Neutral Bar Provided
Ambient Temperature Range -10C to +55C
Safety Regulation Compliance EN, IS, IEC
Assembly Method Welded / Bolted construction
Earthing Provision Provided as per standards
Short Circuit Withstand Capacity Up to 50kA
Busbar Material Electrolytic Copper / Aluminum
Cable Entry Gland plates on top/bottom
Maintenance Front/Rear access for maintenance
Mounting Surface / Floor mounted with anchoring arrangement
Humidity Tolerance Up to 95% RH
Panel Accessories Name Plate, Identification stickers, Earth Bus, Wiring channels
Seismic Resistance Optional, on request

7 Distribution & Sub-Distribution Panel Trade Information

Supply Ability 50 Unit Per Month
Delivery Time 2-4 Week

Product Description

With the assistance of our ingenious team of technocrats, we are able to offer the best quality assortment of 7 Distribution & Sub-Distribution Panel. Designed with breakers, switches, changeovers & other electrical distribution devices, provided panel is widely used for protecting the electrical devices from varied hazards by distributing power loads. This panel is manufactured using quality-tested components and pioneering techniques in conformance with industry quality standards. Clients can purchase the offered Sub Distribution Panel from us at competitive prices.

Features:

Easy to set up
Longer service life
Easy to operate
Resistant to shock and electrical failure

Precision Engineering for Critical Power Needs

Fabricated with CRCA steel and finished in RAL 7032 powder coating, our distribution panels are engineered for durability and reliability. Featuring both welded and bolted construction, these panels offer high mechanical strength and adaptability. With comprehensive accessories like name plates, earth bus, and wiring channels, every aspect is designed for straightforward installation and operation.

Comprehensive Protection & Compliance

Meeting EN, IS, and IEC 61439-1/2 standards, the panels offer advanced electrical protection, including IP42/IP54 ingress protection and Class I safety. Rigorous safety features, such as reliable earthing and neutral bars, ensure dependable operation in varied conditions, with options for natural or forced ventilation to maintain optimal internal environments.

Customizable for Diverse Applications

Available in various sizes and configurationsincluding single, double, and multiple-waysthese panels are tailored as per client requirements. Whether for industrial plants or commercial complexes, customization extends to door types, mounting options, and ventilation systems, ensuring a perfect fit for any distribution scenario.

FAQs of 7 Distribution & Sub-Distribution Panel:

Q: How do I select the appropriate busbar material for my application?

A: Busbars are available in electrolytic copper or aluminum. Copper is typically chosen for its excellent conductivity and durability in high-performance applications, whereas aluminum offers a cost-effective solution where slightly lower current-carrying capacity is acceptable.

Q: What safety standards and certifications do these panels comply with?

A: The panels are manufactured in compliance with EN, IS, and IEC 61439-1/2 standards, ensuring internationally recognized safety, reliability, and performance for both industrial and commercial usage.

Q: When should seismic resistance be considered for my distribution panel?

A: Seismic resistance is recommended if the panel will be installed in regions prone to seismic activity or in critical infrastructure facilities. This feature is optional and can be requested based on your site-specific requirements.

Q: Where can cable entry be configured on the panels?

A: Cable entry options include gland plates on both the top and bottom of the panel, ensuring flexibility during installation based on site conditions and cable routing requirements.

Q: What is the typical process for installation and commissioning?

A: Installation involves mounting (surface or floor anchoring), making cable connections via top or bottom gland plates, and securing all safety and identification features. Front or rear access allows for easy maintenance post-installation.

Q: How does maintenance and servicing work for these panels?

A: Panels are designed for front and rear access, making regular inspection, servicing, or upgrades straightforward and safe. All wiring channels and components are easily accessible to minimize downtime during maintenance.

Q: What benefits do these panels provide for industrial and commercial applications?

A: The panels offer high reliability, modular design, robust construction, and customizable features. These attributes ensure safe and efficient power distribution tailored to demanding environments, delivering long-term operational benefits and reduced maintenance costs.
