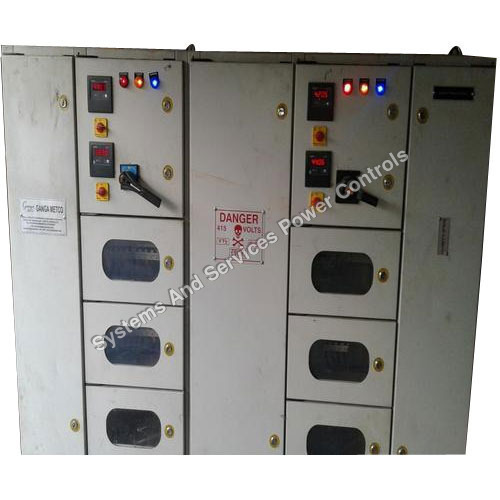

Change Over Panel

Name: Change Over Panel
Brand: Systems And Services Power Controls
Price: 25000 INR
Availability: InStock

25000 INR/Unit

Get a Price/Quote

Product Details:

Operating Voltage 415V
Components A/M/M Changeover, MCCB, Indication Lamps, Busbar
Control System Manual or Automatic Control
Rated Operation Voltage 415V
Cabinet Material Mild Steel
Panel Type Wall Mounted / Floor Standing
Features Corrosion Resistant, Easy Installation, Durable
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Change Over Panel Price And Quantity

Minimum Order Quantity 1 Unit
Price 25000 INR/Unit

Change Over Panel Product Specifications

Application Automatic/Manual Power Transfer between mains and generator
Current Rating 800A
Display Type LED Indication
Thickness 2 mm
Way Double Way
Frequency (MHz) 50Hz
Cooling System Natural Air Cooling
Dimension (L*W*H) 900mm x 600mm x 250mm
Product Type Change Over Panel
Base Material CRCA Sheet
Rated Voltage 415V AC
Surface Finish Powder Coated
Standard IEC 61439, IS 8623
Components A/M/M Changeover, MCCB, Indication Lamps, Busbar
Operating Voltage 415V
Control System Manual or Automatic Control
Rated Operation Voltage 415V
Cabinet Material Mild Steel
Panel Type Wall Mounted / Floor Standing
Features Corrosion Resistant, Easy Installation, Durable
Maximum Output Current 800A
Protection Class Class I
Protection Level IP54
Surface Color Siemens Grey
Cover Material MS Sheet
Material Mild Steel (MS)
Rated Current 630A
Connectivity Type Hardwired
Rated Insulation Voltage 690V
IP Rating Ip54

Change Over Panel Trade Information

Supply Ability 50 Unit Per Month
Delivery Time 2-4 Week

Product Description

Change Over Panel is a high-performance industrial control unit that is used to transfer the power supply from the main source to the auxiliary source in case of repairing to make the machine capable to run continuously without any risk of damages. It is mainly used in motor and pump control systems to prevent breakdown. The offered Change Over Panel is provided with manual levers to easily shift power control. Buyers can get this machine from us as per their demands with a delivery time in between 2 to 4 weeks.

Product details

Current	60 A
Operating Voltage	220 V AC
Phase	3 - Phase
Degree of Protection	IP54
Frequency	50 Hz
Power	10 kW

Technical Specifications

Color	White
Type	Changing panel
Usage	Generator, Motor Control, Submersible Pump

Versatile Installation and Superior Durability

This change over panel is suitable for both wall and floor mounting in indoor and outdoor environments, providing flexibility during installation. Its sturdy construction utilizes powder-coated mild steel and CRCA sheets, making it resistant to corrosion and vermin. The dust-proof enclosure (IP54 protection) ensures reliable operation even in challenging conditions, with a Siemens Grey finish for a uniform appearance.

Advanced Safety and Compliance Features

Equipped with a lockable hinged door and a dedicated earth bar, this panel guarantees optimal safety during use. Adhering to international and national standards including IEC 61439 and IS 8623, it ensures high reliability and user protection. The inclusion of MCCB and class I protection make it suitable for demanding industrial and utility applications.

Efficient Power Management and Control

This change over panel provides automatic or manual transfer between mains and generator power sources. Featuring LED indication lamps for real-time status, minimal maintenance is required due to the natural air cooling system. With rated voltage at 415V and up to 800A output current, it is ideal for heavy-duty power management in factories, utilities, and commercial settings.

FAQs of Change Over Panel:

Q: How does the change over panel facilitate power transfer between the mains and a generator?

A: The panel incorporates a four pole double throw changeover system, allowing either manual or automatic transfer of power between the mains supply and a generator. Users can select the source seamlessly using the provided controls for uninterrupted power.

Q: What installation options are available for the change over panel?

A: You can install the panel indoors or outdoors, as it is designed for wall or floor mounting. The dust and vermin proof IP54 enclosure ensures protection against tough environmental conditions for versatile usage.

Q: When is it necessary to use this change over panel?

A: The panel is crucial during power outages or transitions, enabling safe and efficient switching between main supply and generator power. It is commonly used in factories, commercial buildings, and critical utility applications requiring continuous electricity.

Q: Where should the change over panel be installed for optimal operation?

A: It is recommended to install the panel at easily accessible locations with proper ventilation. Both indoor and outdoor installations are supported, but ensure the site is secure, dry, and complies with local electrical regulations for maximum safety and performance.

Q: What materials are used in the construction of the change over panel, and what are their advantages?

A: The panel is built from mild steel (MS) and CRCA sheets, with a powder-coated Siemens Grey finish for durability and corrosion resistance. Electrolytic copper is used for busbars, maximizing electrical conductivity and reliability.

Q: How does the panel ensure safety during operation?

A: Safety features include a lockable hinged door, earth bar for safe earthing, IP54 protection against dust and water, MCCB for circuit protection, and adherence to IEC 61439 and IS 8623 standards. These elements protect users and equipment from electrical hazards.

Q: What are the main benefits of using this change over panel?

A: Key benefits are reliable power transfer, enhanced safety, easy installation, corrosion resistance, compatibility with copper and aluminium wiring, and suitability for harsh environments. Its durable design and compliance with standards make it an ideal solution for power management.
