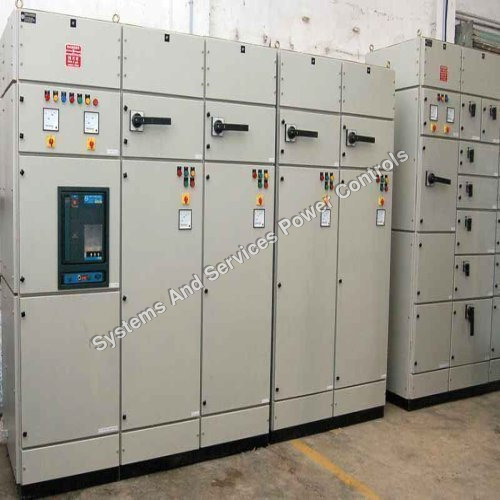

HT Panels

Name: HT Panels
Brand: Systems And Services Power Controls
Price: 25000 INR
Availability: InStock

25000 INR/Unit

Get a Price/Quote

Product Details:

Rated Insulation Voltage Up to 36 kV
Current Rating Up to 4000A
Connectivity Type Wired
Cooling System Natural Air Cooling
Thickness 2 mm (Panel Body)
Rated Current Up to 4000A
Control System Manual / Automatic Control
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

HT Panels Price And Quantity

Minimum Order Quantity 1 Unit
Price 25000 INR/Unit

HT Panels Product Specifications

Display Type Digital / Analog Meters
Features Dust Proof, Sturdy Construction, Compact Design
Rated Operation Voltage 11 kV / 33 kV
Maximum Output Current Up to 4000A
Dimension (L*W*H) Customized as per requirement
Current Rating Up to 4000A
Rated Insulation Voltage Up to 36 kV
Cooling System Natural Air Cooling
Connectivity Type Wired
Rated Voltage 11 kV / 33 kV
Thickness 2 mm (Panel Body)
Product Type High Tension Panel
Control System Manual / Automatic Control
Rated Current Up to 4000A
IP Rating IP42 / IP54
Frequency (MHz) 50 Hz
Standard IEC 61439 / IS 8623
Surface Finish Powder Coated
Base Material Mild Steel
Operating Voltage 11 kV / 33 kV
Material Mild Steel
Protection Level IP42 / IP54
Panel Type Outdoor / Indoor Type
Way Multiple Ways Available
Cabinet Material Mild Steel Sheet
Components VCB, ACB, CTs, PTs, Relays, Busbar
Cover Material Powder Coated Sheet Steel
Application Industrial, Commercial, Utilities
Surface Color Grey
Protection Class Class I

HT Panels Trade Information

Supply Ability 50 Unit Per Month
Delivery Time 2-4 Week

Product Description

HT Panels is a high-powered unit that is specially designed for power distribution centers to control large currents and voltages to ensure higher safety within the power lines. It is designed and developed as per electrical engineering standards that make it highly efficient as well as robust in construction. It can also be used in large-scale industries to control electrically powered machines. The offered HT Panels is provided with a sturdy metallic casing that acts as a protective barrier to prevent damages to the electrical elements.

Specifications:

Used in industries
Size: Customized
Electrical distribution board

Product details

Operating Voltage	220-440V
Degree of Protection	IP65
Phase	Three Phase
Material	CRCA Sheet
Brand	SSP
Frequency	50-60Hz
Surface Finish	Powder Coated
Ambient Temperature	5-55 Deg C
Usage/Application	Industrial

Reliable Performance for Every Industry

Engineered to withstand challenging conditions, our HT Panels deliver outstanding reliability for industrial, commercial, and utility sectors. The combination of mechanical and electrical interlocking, advanced insulation, and short circuit withstand capability up to 50 kA ensures optimum safety. With both manual and automatic control options, users gain flexibility and seamless operation throughout their infrastructure.

Customizable and User-Centric Design

All panels are available in various configurationstailored dimensions and multiple waysensuring each installation fits seamlessly into your facility. With top or bottom cable entry options, floor mounting, and access for earthing as per standards, adaptability meets convenience, while epoxy polyester powder coating provides lasting corrosion resistance.

Superior Protection and Standards Compliance

Meeting IEC 61439 and IS 8623 standards, our HT Panels guarantee high-grade protection with IP42/IP54 ratings. The panels come equipped with VCBs, ACBs, CTs, PTs, relays, and busbars to ensure safe and efficient energy management. From dust-proof construction to sturdy assembly, every feature promises longevity and reliable performance.

FAQs of HT Panels:

Q: How are HT Panels installed at a site?

A: HT Panels are floor-mounted units, designed for both indoor and outdoor installation. The dimensions can be customized to fit available space, and cable entry is available from the top or bottom. Installation follows standard electrical practices and must be performed by qualified professionals to ensure proper connection, earthing, and compliance with IEC/IS norms.

Q: What is the benefit of using electrolytic copper or aluminium as busbar materials?

A: Electrolytic copper and aluminium are chosen for their superior electrical conductivity, durability, and reliability. Copper offers lower resistance and higher current carrying capacity, whereas aluminium provides a lighter and cost-effective alternative. The choice depends on application requirements and budget considerations.

Q: When should mechanical and electrical interlocking be used in HT Panels?

A: Mechanical and electrical interlocking systems are built into the panels to prevent operational errors and unsafe conditions. Use them whenever multiple breakers or switches could interfere with each others operation, ensuring only safe sequences of operation occur during maintenance or switching cycles.

Q: Where are HT Panels typically utilized?

A: These HT Panels are extensively used in industrial facilities, commercial buildings, and utilities where high voltage power distribution is required. Their robust construction and versatile features make them suitable for a wide variety of demanding electrical environments in India and globally.

Q: What is the process of customizing an HT Panel as per project requirements?

A: Customization starts with providing the required specifications such as voltage, current rating, dimensions, mounting preference, and application details. Our technical team then designs the panel to fit your needs, incorporating required components, protection classes, and additional features like display type, control system, and connectivity.

Q: How does the epoxy polyester powder coating enhance panel durability?

A: Epoxy polyester powder coating ensures a tough, corrosion-resistant finish on the mild steel panel surface. This treatment protects the unit from environmental factors, dust, and wear, ultimately prolonging the panels functional lifespan in tough industrial settings.

Q: What are the key benefits of selecting this HT Panel for your facility?

A: Choosing our HT Panel ensures you get a dust-proof, sturdy, and compact solution that supports both manual and automatic operations. The panels are engineered for safe, reliable, and efficient energy management, with compliance to international standards, advanced protection, and options for both digital and analog monitoring.
