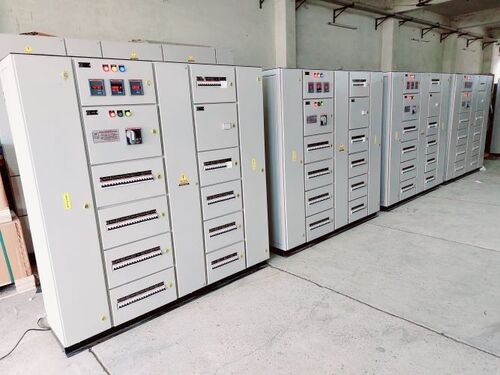

DC Distribution Board

Name: DC Distribution Board
Brand: Systems And Services Power Controls
Price: 25000 INR
Availability: InStock

25000 INR/Unit

Get a Price/Quote

Product Details:

Cooling System Natural Air Cooling
Way 4 Way (customizable)
Panel Type Wall Mounted
Components MCB/MCCB, Busbar, Terminal Blocks, DC Fuse, Indicator Lamps
Cover Material Powder Coated Mild Steel
Current Rating Up to 200A
Rated Insulation Voltage 690V
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DC Distribution Board Price And Quantity

Minimum Order Quantity 1 Unit
Price 25000 INR/Unit

DC Distribution Board Product Specifications

Protection Level IP42 / IP54 (as required)
Rated Voltage 12V / 24V DC
Connectivity Type Wired Terminal
Frequency (MHz) DC (0 Hz)
Features Corrosion Resistant, Modular Design, Easy Installation, Customizable
Cooling System Natural Air Cooling
Components MCB/MCCB, Busbar, Terminal Blocks, DC Fuse, Indicator Lamps
Way 4 Way (customizable)
Panel Type Wall Mounted
Rated Insulation Voltage 690V
Dimension (L*W*H) 450 x 400 x 200 mm (approx.; varies with configuration)
Surface Finish Powder Coated
Cover Material Powder Coated Mild Steel
Current Rating Up to 200A
Maximum Output Current 200A
Surface Color Grey / Siemens Grey
Standard IS 8623, IEC 61439
Product Type DC Distribution Board
Control System Manual Switchgear operation
Operating Voltage 12 / 24 / 48 V DC
Material Mild Steel (MS)
Rated Current 40A, 60A, 100A, 125A (as per model)
Protection Class Class I
Base Material Mild Steel Sheet
IP Rating IP42 or IP54
Thickness 1.6 mm
Display Type LED Indicator
Rated Operation Voltage 12/24/48 VDC
Application Solar PV system, Telecom BTS, Industrial DC power distribution
Cabinet Material Mild Steel

DC Distribution Board Trade Information

Supply Ability 50 Unit Per Month
Delivery Time 2-4 Week

Product Description

To keep pace with the varied requirements of clients, we are engaged in offering top grade range of DC Distribution Board. This board is used for dividing an electrical power feed into subsidiary circuits for protecting varied electrical devices. Provided board is manufactured by our skilled technocrats using optimum quality components and modern techniques. In addition, we are offering this DC Distribution Board/Power Distribution Board to our clients in different technical specifications at market leading prices.

Features:

Simple to install
Shock-proof
Extended service life
Robust construction

Specifications:

Type: DC Boards
Rated Voltage: 380 V
Rated Current: 63 A to 2500 A

Product details

Current	63 A to 2500 A
Service Location	Pan India
Service Mode	Onsite
Surface Finish	Powder Coated
Material	CRCA Sheets
IP Rating	IP41 IP52 IP54 IP65
Brand	SSP
Service Type	DC Distribution Board Service
Operation Voltage	Up to 440 V

Customizable Circuit Capacity

The DC Distribution Board facilitates up to 12 incoming or outgoing circuits, allowing tailored configurations based on specific project requirements. This flexibility ensures efficient power management for various industrial setups and supports expansion as operational needs evolve.

Robust Construction and Safety Features

Equipped with tinned copper busbars and a securely lockable, hinged front door, the distribution board assures long-term durability and reliable protection. The provided earth busbar and neutral link enhance electrical safety, while the units wide operating temperature range supports uninterrupted performance.

Versatile Mounting and Installation

Engineered for both wall and optional floor mounting, the board offers adaptable installation choices. Top and bottom cable knockouts simplify wiring processes, streamlining both initial setup and future maintenance in diverse environments.

FAQs of DC Distribution Board:

Q: How is the DC Distribution Board typically installed in industrial environments?

A: The board is designed for flexible mounting, allowing installation on walls or floors as needed. It includes knockouts at the top and bottom for convenient cable entry, supporting efficient integration into existing setups.

Q: What advantages does using tinned copper busbars provide in this distribution board?

A: Tinned copper busbars offer excellent electrical conductivity and superior resistance to corrosion, ensuring long-term reliability and minimal maintenance even in challenging conditions.

Q: When should I choose a DC Distribution Board with up to 12 customizable circuits?

A: This board is ideal when you require scalable DC power distribution solutions, accommodating growth or varied operational demands. Choose it for applications that may need expansion or tailored circuit arrangements.

Q: Where can the DC Distribution Board be utilized?

A: It is suitable for a range of commercial and industrial settings, including manufacturing plants, data centers, telecommunication hubs, and renewable energy installations where precise DC distribution and control are essential.

Q: What is the process for customizing the circuit configuration?

A: Customization involves selecting the number and arrangement of incoming and outgoing circuits up to 12, based on project specifications. Our team assists in configuring the board to ensure optimal distribution and safety.

Q: How does the earth busbar and neutral link contribute to safe operation?

A: The provided earth busbar enhances grounding, diminishing electrical risk, while the neutral link facilitates proper return paths for current, supporting safe and compliant power distribution.

Q: What are the benefits of the front-hinged lockable door?

A: The front-hinged lockable door secures internal components, prevents unauthorized access, and enables straightforward, safe maintenance, thereby enhancing overall operational safety.
