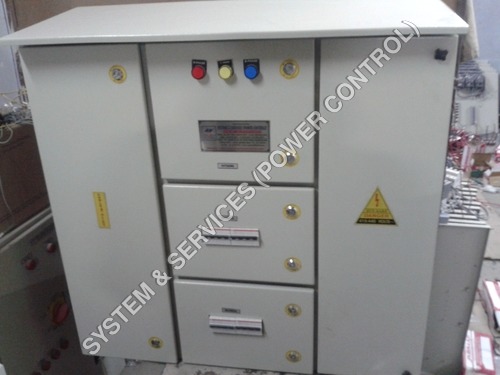

AC Distribution Board

Name: AC Distribution Board
Brand: Systems And Services Power Controls
Price: 25000 INR
Availability: InStock

25000 INR/Unit

Get a Price/Quote

Product Details:

Thickness 1.6 mm
Base Material Mild Steel
Operating Voltage 220-415 V
Features Highly Durable, Rust Proof, Easy Installation
Cover Material Mild Steel with Powder Coating
Components Busbars, Circuit Breakers, Copper/Aluminum Conductors
Cabinet Material Mild Steel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

AC Distribution Board Price And Quantity

Minimum Order Quantity 1 Unit
Price 25000 INR/Unit

AC Distribution Board Product Specifications

Connectivity Type Wired
Maximum Output Current 100 A
Rated Operation Voltage 415 V
Protection Class Class I
Surface Color Grey
IP Rating IP42
Standard IEC 61439 / IS 8623
Material Mild Steel (MS)
Dimension (L*W*H) 300 x 250 x 100 mm (customizable)
Way 4 Way / 8 Way / 12 Way (as per selection)
Rated Current 100 A
Rated Voltage 415 V AC
Cooling System Natural Air Cooling
Application Electrical Distribution in Commercial & Residential Buildings
Surface Finish Powder Coated
Operating Voltage 220-415 V
Cover Material Mild Steel with Powder Coating
Features Highly Durable, Rust Proof, Easy Installation
Thickness 1.6 mm
Product Type AC Distribution Board
Base Material Mild Steel
Frequency (MHz) 50 Hz
Current Rating 100 A
Protection Level IP42
Rated Insulation Voltage 660 V
Components Busbars, Circuit Breakers, Copper/Aluminum Conductors
Control System Manual Switch Operation
Cabinet Material Mild Steel
Panel Type Wall Mounted

AC Distribution Board Trade Information

Supply Ability 50 Unit Per Month
Delivery Time 2-4 Week

Product Description

Owing to our rich knowledge of two decades, we are instrumental in manufacturing, exporting and supplying an assorted array of AC Distribution Board. This board is used in commercial and industrial applications for dividing AC power to several loads of different current ratings. The provided board is manufactured using superior-quality components and progressive techniques as per set ISO 9001:2008 standards. Additionally, we offer this AC Distribution Board to our clients in different technical specifications at rock-bottom rates.

Features:

Maintenance free
Longer service life
Hassle free functioning
Easy installation

Product details

Current	10 A to 400 A
Service Location	Pan India
Service Mode	Onsite
Surface Finish	Powder Coated
Material	GI, CRCA Sheets
IP Rating	IP 65
Brand	SSP
Service Type	AC Distribution Board Service
Operation Voltage	Up to 380 V

Robust Electrical Distribution

Equipped to handle rigorous electrical loads, this distribution board is suitable for both residential and commercial environments. The use of high-grade mild steel, alongside flexible selection of busbar materials, ensures longevity and performance. A secure locking provision and structured internal layout safeguard against unauthorized access and operational hazards.

Versatile and Easy to Install

Installation is straightforward thanks to wall-mounting options and top/bottom cable entry. The hinge-mounted, single door design facilitates quick maintenance or inspection. Multiple configuration choices4, 8, or 12 wayaccommodate varying distribution needs, making this board suitable for projects of all sizes.

Standards-Compliant Safety Features

Manufactured in accordance with IEC 61439 / IS 8623, this AC Distribution Board integrates Class I protection, flame-retardant properties, and over 1000 M insulation resistance. Combined with a natural air cooling system and rust-proof finish, these features promote safe, long-term operation for up to a decade or more.

FAQs of AC Distribution Board:

Q: How do I install the AC Distribution Board and what mounting options are available?

A: The AC Distribution Board is designed for surface or wall mounting, making installation straightforward on various wall types. Detailed instructions and necessary mounting provisions ensure a secure and safe setup, whether you choose to position the unit indoors in commercial or residential environments.

Q: What are the key benefits of choosing busbars made of E-Cu (copper) or aluminum?

A: The distribution board provides the flexibility to select E-Cu (copper) or aluminum busbars based on your specific application requirements. Copper offers excellent conductivity and durability, while aluminum is lighter and cost-effective. Both options guarantee reliable electrical performance and efficient power distribution.

Q: When should the AC Distribution Board be used in electrical systems?

A: This distribution board is ideal for new electrical installations or upgrades in commercial and residential buildings. Its engineered to safely manage and distribute power up to 100 A and is suitable when a dependable and standards-compliant solution is needed to protect and organize circuits.

Q: What safety features are incorporated into the AC Distribution Board?

A: Safety is enhanced by features such as earthing provision, a locking mechanism with key or padlock, flame-retardant construction, Class I protection, and a robust powder-coated finish. High insulation resistance and short-circuit withstand capability up to 25 kA ensure optimal protection for users and connected equipment.

Q: How is cable management facilitated in this distribution board?

A: The design includes top and bottom cable entry options, allowing flexibility in wiring and simplifying the connection process. This ensures neat cable management and reduces installation complexity across different building layouts.

Q: Where is the AC Distribution Board commonly used and who are the typical users?

A: This product is widely used in electrical distribution networks for commercial complexes, residential high-rises, industrial facilities, and institutions. It is available to customers in India through exporters, manufacturers, suppliers, and traders, and is appreciated by electrical engineers, contractors, and facility managers for its reliability.
