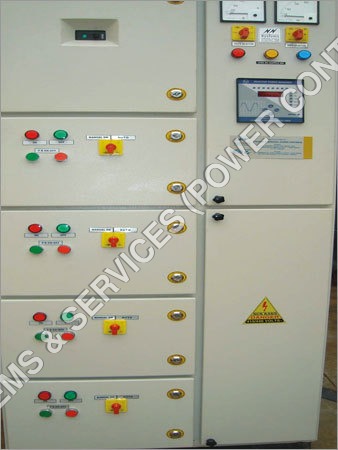

AUTOMATIC POWER FACTOR CORRECTION PANEL (APFC PANEL)

We provide the finest quality Automatic Power Factor Correction Panel (APFC Panel), whose unique designs helps in saving power. Its application is to sustain the power factor at 1.00. It includes several capacitors banks, which range from 1kvar to 50kvar. These intelligent controllers help in maintaining the unity power factor. We manufacture these APFC Panels using latest technology and precision instruments, at our production unit. The capacitor bank of the Automatic Power Factor Correction (APFC) Panel includes capacitor duty contactor and heavy duty capacitors, which are oil-filled. Used in offices and buildings, these panels are provided with manual and auto options to maintain the unity power factor.

Construction

• Drawout / Fixed Type

• Box Type for panels less than 50 kvar

• Fully compartmentalized type construction for panels within 50kvar to 1000kvar

• It consists of Capacitor, Contactor, Mains Bus Bars, Mains MCCB, MCB, and Relay, of suitable rating

 Features:

Power Factor Concept:

Inductive loads are the result of maximum motors, which enhances the rate of power loss.

Watt = Voltage x Current x Power Factor

Power Factor = cos ø , where ø is the angle between current wave and voltage wave. The least value of phase angle (current wave) will result in least power losses.

For the improvement of power factor, parallel construction of capacitors is preferred with the mains supply which results in leading power factor. Consequently, the effect of lagging power factor is neutralized due to inductive loads.

Specifications:

• Draw out / Fixed Type
• Fully compartmentalized type construction for panels within 50 kvar to 1000 kvar
• It consists of capacitor, mains bus bars etc
