DOL Starter Panel

Product Description

DOL Starter Panel

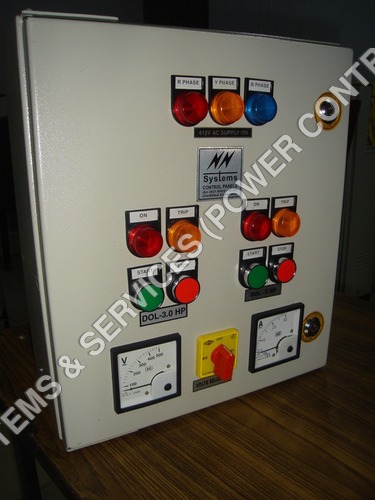

The Direct-On-Line Starter Panel is manufactured in Standard Design as well as customized design. The standard model consists of two nos. DOL Starter Panel of ratings ranging from 0.25HP to 10HP as per customer requirement along with Ampere Meter, Volt Meter, Starter Start/Stop Push Buttons, On/Off LEDs, Three Phase R,Y,B LEDs, Incoming 4Pole MCB, and Outgoing Terminal Blocks. The customized design is also manufactured as per customer requirement. The main application of these panels are Agricultural machines like Gravity Separators, Destoners, Polishers, etc.

Specifications:

• Power: 0.25HP to 10HP
• Ampere Meter, Volt Meter, Starter Start/Stop Push Buttons, On/Off LEDs, Three Phase R, Y, B LEDs, Incoming 4Pole MCB, and Outgoing Terminal Blocks

Product details



Pole	4
Phase	Three Phase
Humidity	Up to 90%
Ambient Temperature	5-50 Deg C
Material	MS, CRCA Sheets
Brand	SSP
Finishing	Powder Coated
Frequency	50-60Hz
Power	0.25HP to 10HP
Usage/Application	Agricultural machines like Gravity Separators, Destoners, Polishers, etc.



Advanced Protection and Durability

Built with a mild steel enclosure and powder-coated finish, the DOL Starter Panel offers strong resistance to harsh industrial environments. Its IP54 rating ensures dust and water resistance, securing reliable motor operation even in challenging conditions. The panel incorporates short circuit protection through MCBs and robust overload relays, enhancing equipment safety and longevity.


Flexible Mounting and Easy Installation

Designed for wall or surface mounting, the DOL Starter Panel is simple to install with provided cable entry knockouts and a user-friendly layout. Both standard and customized dimensions can be accommodated, allowing seamless integration into existing control systems. Its rugged construction and natural air cooling minimize maintenance needs.


Reliable Performance and Compliance

Meeting IS/IEC 60947-4-1 standards, the starter panel ensures dependable performance up to 63A rated current and 10 HP power output. The inclusion of LED indicator lamps, push buttons, and terminal blocks streamlines operation, while full compliance with industry norms guarantees suitability for diverse industrial motor starter applications.
